ALUMINIUM
Modular slat conveyor systems are manufactured from extruded ALUMINIUM with anodised finish, profile is designed with a T-slot which can be used for mounting brackets, supports, drive units, idle ends and splice plates.
STAINLESS
Modular slat conveyors system fabricated from STAINLESS STEEL, folded section with slotted holes which can be used for mounting brackets, supports, drive units, idle units and splice plates.

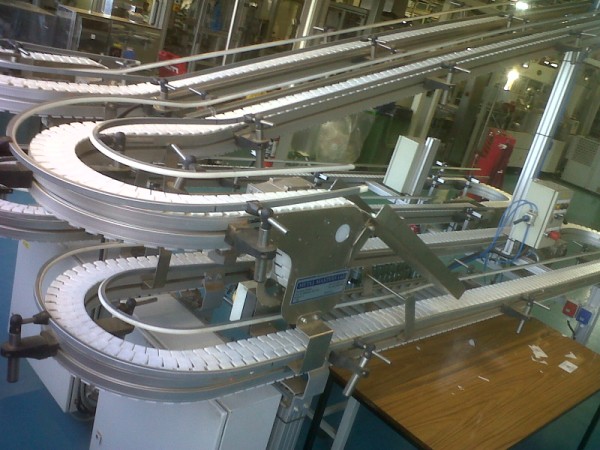

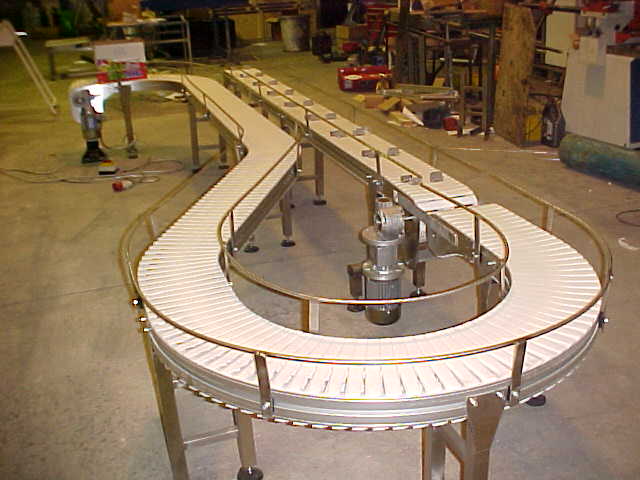

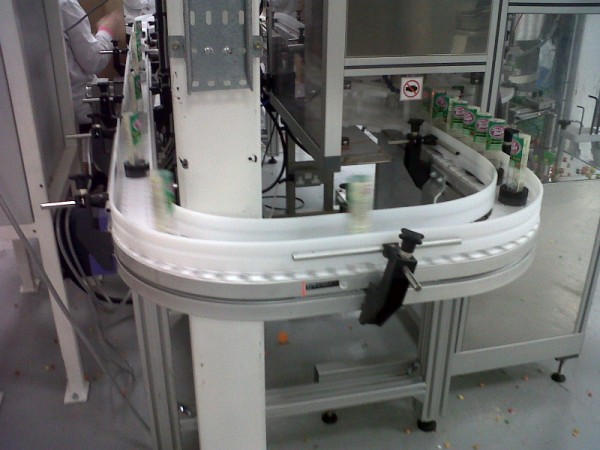

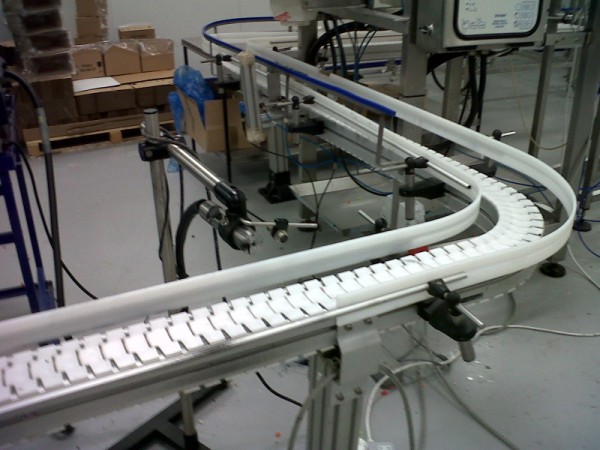

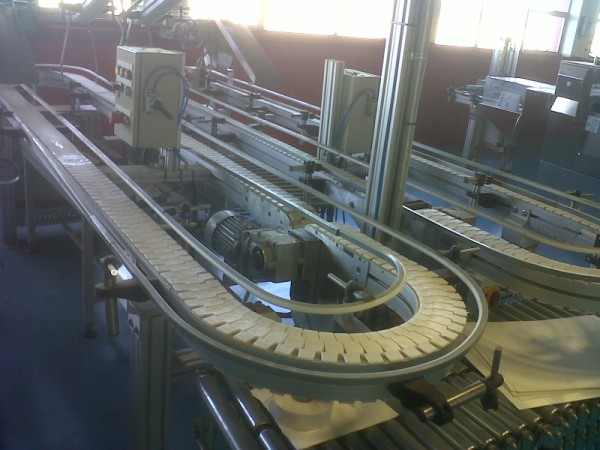

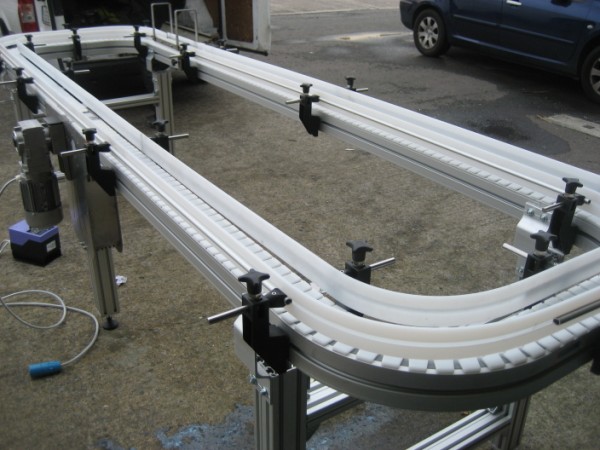

Our chain is available in five different widths, 65mm - 90mm, 120mm, 160mm, 240mm, 320mm with surface in flat top, friction top and flights. Chain can be supplied with horizontal and vertical curves, our horizontal curves are fitted with wheels attached to frame to allow less friction on the belt, which allows for longer straights and more curves with a lower horse power requirement. Our horizontal curves are fitted with wheels attached to frame to allow less friction on the belt.
|
Slat chain 301 |
Slat chain 302 |
Slat chain 303 |
|
Slat chain 304 |
Slat chain 305 |
Slat chain 306 |
|
Bosch Rexroth & Metal Masters |
Slat chain 307 |
Slat chain 308 |
|
Slat chain 309 |
||
